10" - 16" 壓力扇
型號 :
CHV

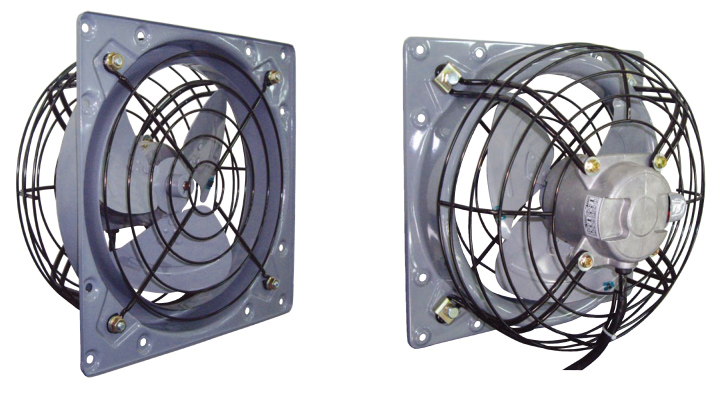

壓力扇（鐵葉） Pressure Exhaust Fan (metal blades)
小型！大風量！低噪音！
鍾形設計，強氣流。
鋼珠軸承，可長時間使用。
能水平、直立、傾斜安裝。
工廠、產業機械、辦公室隔間、洗手間、鑄造工廠、排煙罩等，皆廣用之。
Compact, Large airflow, Low noise.
Bell mouth design, High pressure.
Steely bearing, suitable for continuous applications.
Can be installed horizontally, vertically, obliquely, or in any other position.
These ventilating fans can be used in, factories, machinery, office toilet, foundry shop fume extraction hoods.

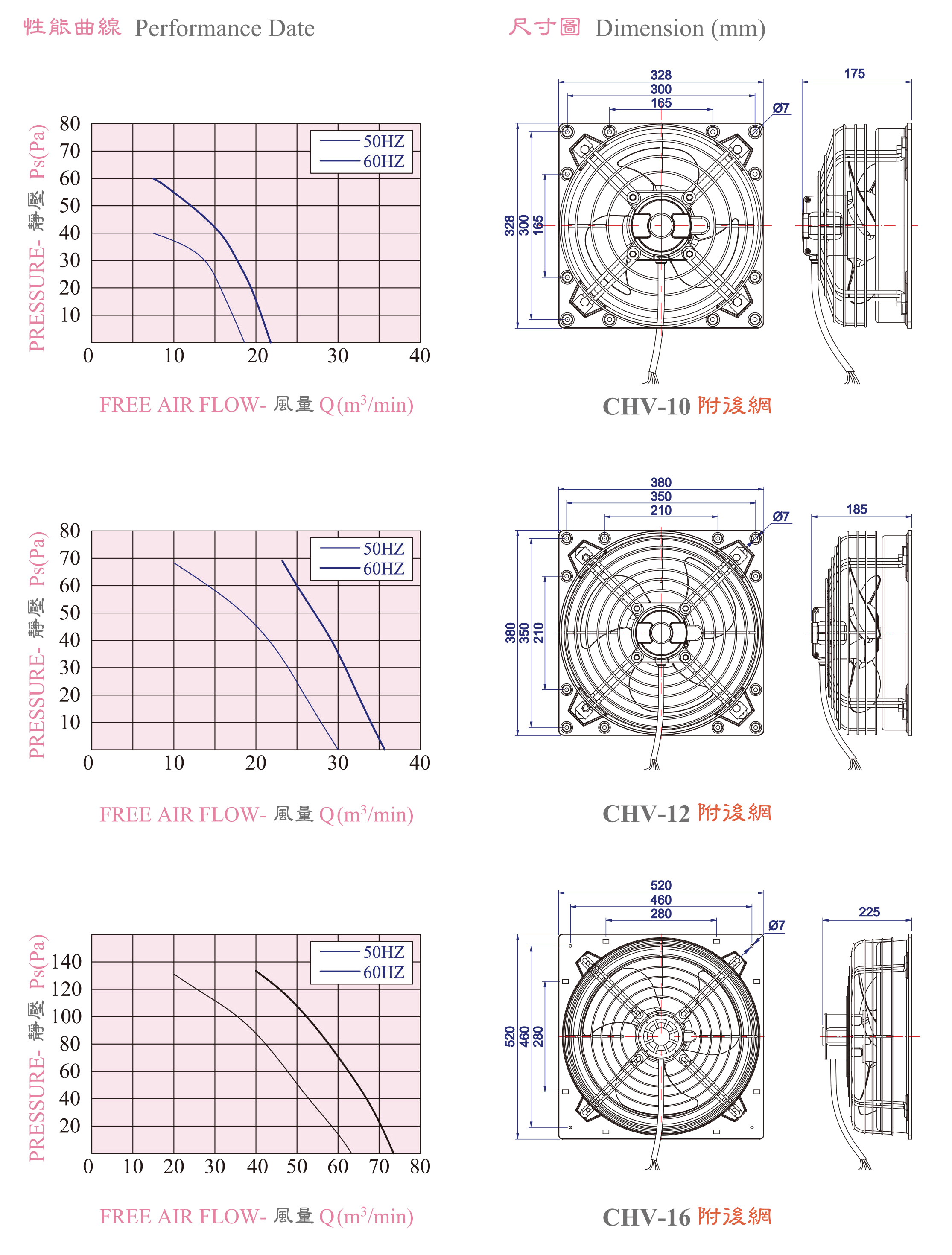

| at 50/60HZ | |||||||||
|
型式 Type |
相數 Phase |
功率 Output (W) |
轉速 (Min-1) |
電壓 Voltage (V) |
電流 Current (A) |
靜壓 Pressure (pa) |
風量 Air Flow (m3/min) |
噪音 Noise dB(A) |
重量 Weight (Kg) |
| CHV-10 | 1~ | 43/50 | 1400/1650 | 110 | 1.2/1.0 | 40/60 | 18/21 | 45/50 | 5 |
| 220 | 0.6/0.5 | ||||||||
| CHV-12 | 1~ | 72/90 | 1400/1650 | 110 | 1.3/1.1 | 68/68 | 30/35 | 50/55 | 6 |
| 220 | 0.7/0.6 | ||||||||
| CHV-16 | 1~ | 160/200 | 1400/1650 | 110 | 3.4/3.0 | 130/150 | 63/73 | 60/65 | 13 |
| 220 | 1.7/1.5 |
