SF 活動式 (袋式) 集塵機 系列
型號 :
SF
用途:
*可靠近粉塵場所收塵,不需配管,節省經費,大幅提高方便與機動性。
*適用於噴砂、砂輪、木工、研磨、切削 等,吸塵粉、棉屑、木削之用。
Applications:
* Designed especially for small working environment suitable for coarse dust or chips.
* Powerfui motor features a cast iron blower house with steel impeller, sealed long lasting operation
*Offer you large collecting capacity.
* Sturdy steel base with four wheel for moving machine to machine, or for storing out of the way.
規格 Specifications
|
型式 Type |
功率 Power (HP) |
風速 Wind velocity (m/sec) |
風量 Air Flow (m3/min) |
吸風口徑 Suction diameter (mm/inch) |
吸風口分叉管 Disagreements diameter (mm/inch) |
過濾袋 Fiter Bags (cm) |
集料袋 Collector Bag (cm) |
組合尺寸 Combination Size (cm) |
包裝尺寸 Packing Size (cm) |
淨重 N.W. (kg) |
毛重 G.W. (kg) |

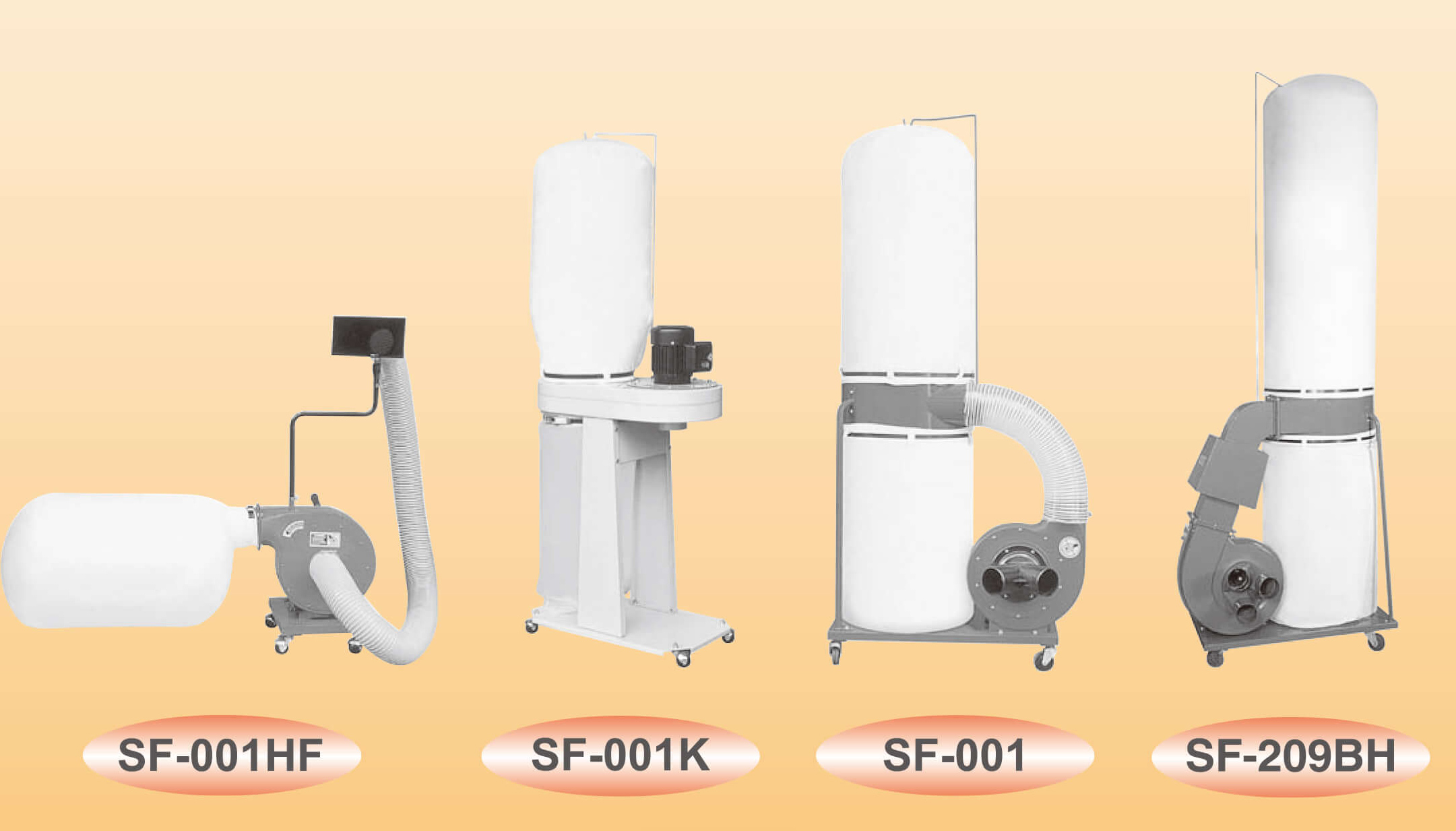

| SF-001HF | 3/4 | 30 | 15 | 100(4") | 100 (4") x1 | ⌀30 | 50x100x50 | 47x40x55 | 20 | 22 | |
| SF-001K | 1 | 32 | 16 | 100(4") | 100 (4") x1 | ⌀35 | ⌀37 | 75x38x185 | 79x43x39 | 36 | 38 |
| SF-001 | 1.5 | 30 | 33 | 150(6") | 100 (4") x2 | ⌀51 | ⌀51 | 90x50x200 | 87x60.5x56 | 52 | 53 |
| SF-209BH | 2 | 21 | 40 | 200(8") | 100 (4") x3 | ⌀61 | ⌀65 | 97x60x280 |
96x74x59 112x62x80 |
70 10 |
75 12 |

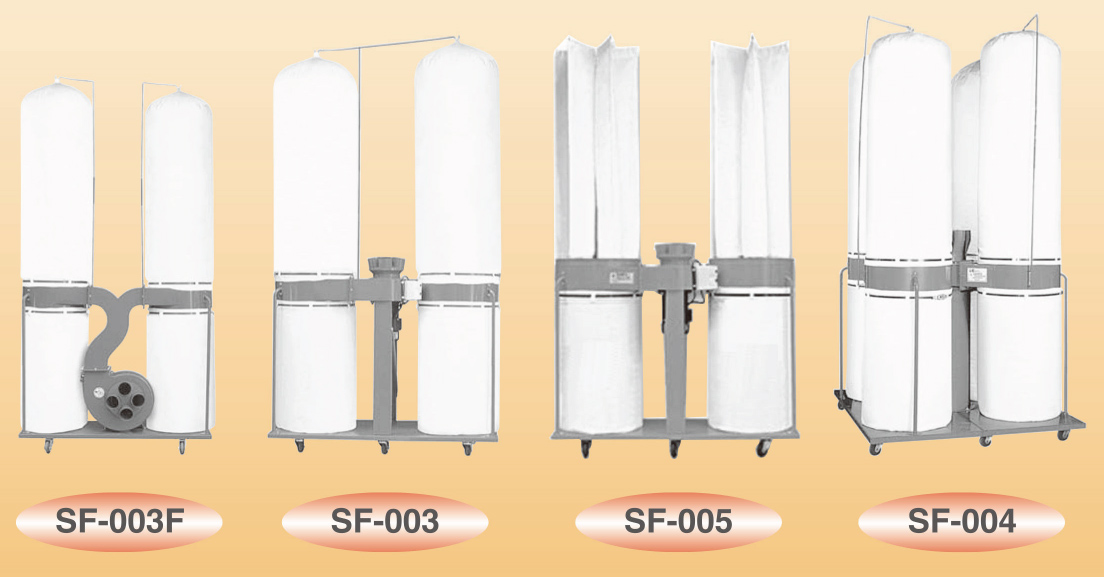

| SF-003F | 3 | 28 | 55 | 200(8") | 100 (4") x4 | ⌀51 | ⌀52 | 144x57x220 |
113x80x58 146x60x8 |
81 31 |
87 15 |
| SF-003 | 5 | 29 | 56 | 200(8") | 100 (4") x4 | ⌀61 | ⌀65 | 168x62x280 |
116x70x68 167x64x5 |
100 18 |
115 20 |
| SF-005 | 5 | 28 | 84 | 250(10") | 100 (4") x4 | ⌀15x6 | ⌀65 | 168x62x280 |
116x70x70 167x64x5 |
100 18 |
115 20 |
| SF-004 | 7.5 | 35 | 107 | 250(10") | 100 (4") x6 | ⌀61 | ⌀65 | 155x130x280 | 162x85x76 | 200 | 250 |
