TX 手提式 抽送風機 系列
型號 :

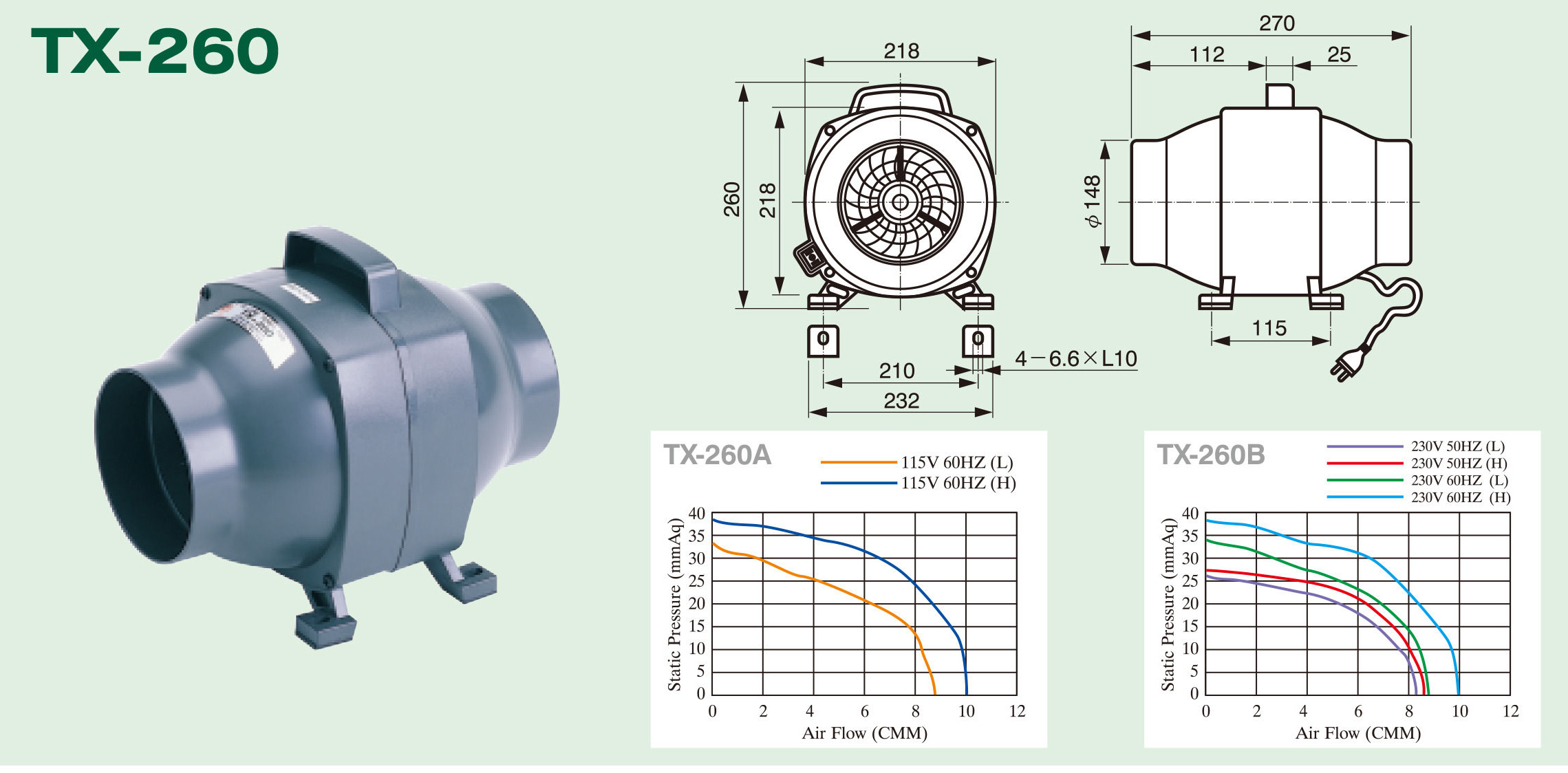

TX-240 , TX-260
| 特性/型號 |
電壓 Voltage V |
頻率 Frequency Hz |
相數 Phase Ø |
極數 Poles P |
轉速 Speed RPM |
入力 Input Power W |
電流 Current A |
風量 Air Flow m3/min |
靜壓 Static Pressure mmAq |
噪音 Noise dB(A) |
重量 Weight kg |
| TX-240A | 115 | 60 | 1 | 2 | 2860 (L) | 40 | 0.38 | 3.5 | 19 | 54.5 | 1.7 |
| 3380 (H) | 55 | 0.54 | 4 | 21 | 58.5 | ||||||
| TX-240B | 230 | 60 | 1 | 2 | 2700 (L) | 35 | 1.7 | 3.1 | 14 | 53.5 | 1.7 |
| 50 | 3020 (L) | 40 | 0.65 | 3.6 | 19 | 55.5 | |||||
| 230 | 50 | 1 | 2 | 2880 (H) | 52 | 0.85 | 3.2 | 15 | 54.5 | 1.7 | |
| 60 | 3380 (H) | 55 | 0.27 | 4 | 21 | 58.5 | |||||
| TX-260A | 115 | 60 | 1 | 2 | 2780 (L) | 155 | 1.5 | 8.7 | 33 | 65.5 | 3.7 |
| 3340 (H) | 163 | 1.6 | 10 | 38 | 69 | ||||||
| TX-260B | 230 | 60 | 1 | 2 | 2750 (L) | 105 | 0.52 | 8.3 | 26 | 65.2 | 3.7 |
| 50 | 2950 (L) | 155 | 0.75 | 8.8 | 34 | 66.2 | |||||
| 230 | 50 | 1 | 2 | 2870 (H) | 120 | 0.62 | 8.6 | 27 | 66 | 3.7 | |
| 60 | 3330 (H) | 163 | 0.8 | 10 | 28 | 69 |
