• JM 系列

JM 系列

型號 : JM-4502 , JM-624 , JM-734N

適用範圍

  1. 造船廠、焊接時排煙,散熱,油漆面吹乾,驅散臭氣。
  2. 煉鋼、壓鑄廠、延壓、鑄造時冷卻用。
  3. 高熱度作業場所熱、通風用。
  4. 大賣場、量販店倉庫內防潮、通風、除濕。
  5. 大型工地、隧道施工、地下室通風、換氣用。
  6. 體育館、大型集會場廣角送風、散熱。
  7. 貨櫃內裝貨時,用以驅散悶熱。
  8. 大型溫室、蘭花房通風。
  9. 攝影棚颱風效果模擬。
  10. 農、漁、牧產品風乾。




功能特性


  1. 最新技術,機殼一體成型,無接縫,可避免因接縫間隙落差所產生的壓力損失及噪音。
  2. 風殼兩端捲圓邊避免銳角碰傷人員及割傷軟式風管。
  3. 風機採用流線鍾型進出風口、導流鼻頭、可調式導風板、調整桿。
  4. 造型優美,送風順暢強勁。
  5. 附煞車輪架、吊環,安裝輕便。
  6. 進出風口可依需求做90°或180°上下仰角調整。
  7. 小馬力、大風量,高效率運轉。
  8. 馬達具有安全過載保護裝置。
  9. 出風方向範圍,上下仰角可任意調整直向宋風,擴散送風。
  10. 電壓可以現場需求製作。
  11. 本系列新產品陸續研發當中。




APPLICABLE FIELDS:

  1. Shipyard uses this device to get rid of smoking and heating during electric soldering, dry paint, fresh air and less odor.
  2. Steel mill and casting factory use this tool for cooling purpose on extending pressure and ice casting.
  3. Ventilation for working sites in high temperature.
  4. Damp-proof, dehumidification, ventilation for warehouses of hypermarkets and discount stores.
  5. Ventilation for big workshop, tunnel and basement.
  6. Diffuse ventilation for gyms, stadiums and big parties.
  7. Ventilation for loading container.
  8. Ventilation for large green house and flower house.
  9. To imitate typhoon effect in the studio.
  10. Air-dry agricultural, fishery and animal products.



FEATURES:

  1. Advanced skill, one -piece casting housing and seamless to avoid emerging the pressure losses and noise due to the drop in elevation for seam.
  2. The casing with roll-side to avoid hurting people and cutting the duct by acute angle.
  3. The ventilator adopts streamlined bell-shaped air inlet/oulet, conducted tip of nose, adjustable airflow guide plate and adjustable rod.
  4. Good appearance and fluent airflow.
  5. With brake flying wheels and hanger; easy for installation.
  6. The vent for inlet or outlet, the angle can be adjusted for doing up=down 90-180 degree according to requirement.
  7. Small HP, strong air flow and high efficient operation.
  8. Motor mounted with safety device for over loading protection.
  9. The extending range of air flow, no matter vertical air or diffuse air can be adjusted by using adjustable angle handle, doing up or down angle as you wish.
  10. The voltages are made according to sites requirement.
  11. The series of these new products are continually researching and developing.

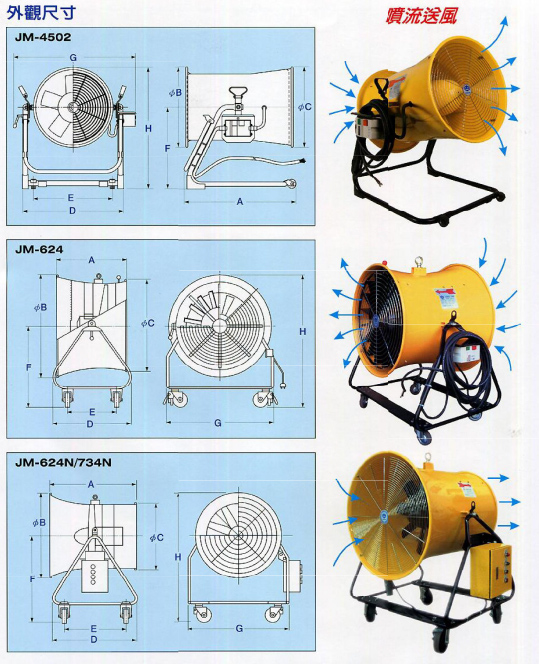

ITEM/SIZE A B C D E F G H
JM-4502 635 465 465 539 360 5027 682 735
JM-624 660 8080 712 700 512 710 914 1115
JM-624N 820 808 643 700 592 700 951 1135
JM-734N 820 960 752 800 594 832 1066 1312



型號 Model 葉輪直徑 電壓 頻率 相數 出入 極數 風量 靜壓
Blade Dia. Voltage Frequency Phase Output Pole Air Flow Static Pressure
mm V Hz HP/W P m3/min mmAq
JM-4502 Ø369mm 110V, 220V 50/60Hz, 60Hz 1 1/2HP 2P 117/140 97/115
JM-624 Ø600mm 220V 50/60Hz 2HP 4P 340/420 -
JM-624N Ø600mm 220V 50/60Hz 2HP 4P 340/420 -
JM-734N Ø710mm 220V 50/60Hz 3HP 4P 460/550 -
