多翼皮帶式抽送風機 - JSB型
型號 :

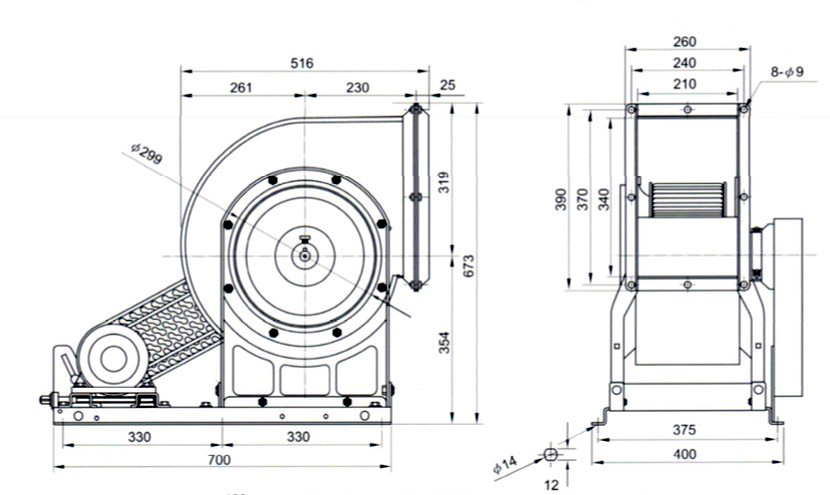

JSB-120F
| 特性/機型 |
電壓
Voltage
V
|
頻率
Frequency
Hz
|
相數
Phase
∅
|
極數
Poles
P
|
出力
Output
HP
|
電流
Current
A
|
轉速
Speed
RPM
|

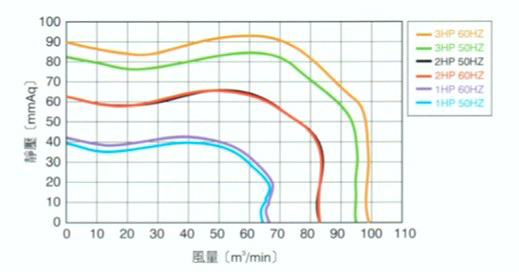

風量
Air Flow
m3/min
|
靜壓
Static Pressure
mmAq
|
噪音
Noise
dB(A)
|
淨重
Weight
Kg
|
| JSB-120F(1 HP) | 220 | 50 | 3 | 4 | 1 | 3.44 | 1430 | 66 | 39.5 | 74 | 34 |
| 220 | 60 | 3 | 4 | 1 | 3.14 | 1720 | 67 | 43 | 75 | 34.2 | |
| 380 | 50 | 3 | 4 | 1 | 1.99 | 1430 | 66 | 39.5 | 74 | 34 | |
| 380 | 60 | 3 | 4 | 1 | 1.82 | 1720 | 67 | 43 | 75 | 34.2 | |
| JSB-120F(2 HP) | 220 | 50 | 3 | 4 | 2 | 6.27 | 1425 | 83 | 65 | 81 | 34.8 |
| 220 | 60 | 3 | 4 | 2 | 5.58 | 1715 | 83 | 65 | 81 | 34.6 | |
| 380 | 50 | 3 | 4 | 2 | 3.63 | 1425 | 83 | 65 | 81 | 34.8 | |
| 380 | 60 | 3 | 4 | 2 | 3.23 | 1715 | 83 | 65 | 81 | 34.6 | |
| JSB-120F(3 HP) | 220 | 50 | 3 | 4 | 3 | 8.91 | 1445 | 95 | 85 | 84.5 | 35.5 |
| 220 | 60 | 3 | 4 | 3 | 8.18 | 1730 | 99 | 92 | 85 | 34.7 | |
| 380 | 50 | 3 | 4 | 3 | 5.16 | 1445 | 95 | 92 | 84.5 | 35.5 | |
| 380 | 60 | 3 | 4 | 3 | 4.74 | 1730 | 99 | 85 | 85 | 34.7 |
