RB 系列
型號 :
RB
環形鼓風機 Ring Blower (Side Channel Blower)
用途：應用再生理論所設計的環形鼓風機，單段風葉經小風量增速，產生高風壓特性。免保養，無油氣，壽命長！
Futural: Ring Blowers are designed with practical regenerative theory.
Require no maintenance! No oily odor! eternity life!

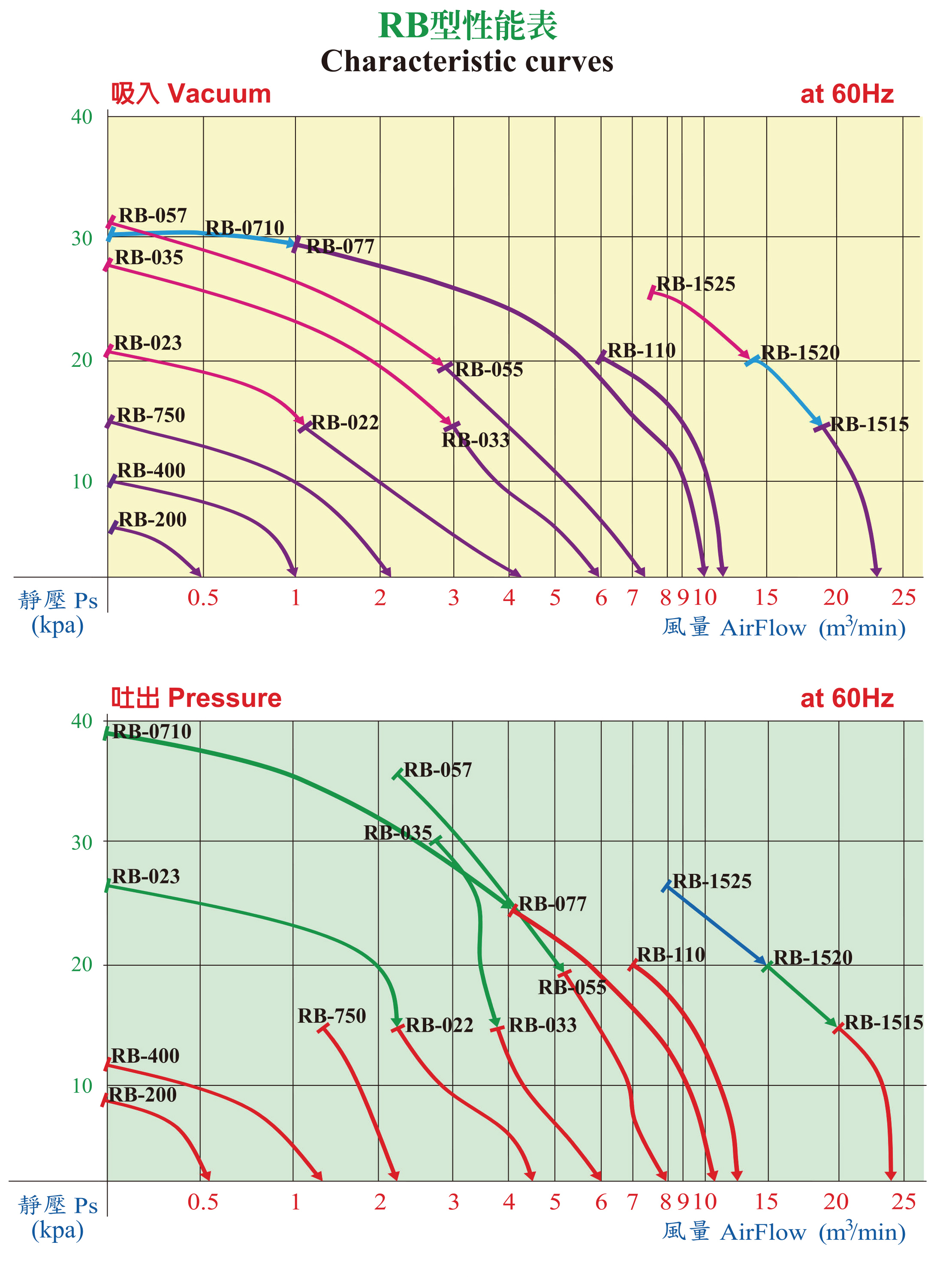

at 60HZ
| 型式 Type | 相數 | 功率 | 電壓 | 電流 | 最大使用靜壓 吸入/吐出 | 最大風量（吐出） | 出入口徑 | 噪音 | 重量 |
| Phase | Power | Frequency | Phase | Vacuum/Presure (Rated) | Air Flow (max) | In/Out | Noise Level | Weight | |
| (KW) | (V) | (A) | (Kpa) | (m3/min) | Let | (dB) | (Kg) | ||
| RB-200S | 1~ | 0.2 | 220 | 1.5 | 7/9 | 0.6 | PF 1" | 65 | 8 |
| RB-400S | 1~ | 0.4 | 220 | 2.5 | 10/12 | 1.3 | PF 1 1/4" | 68 | 11 |
| RB-750S | 1~ | 0.75 | 220 | 5 | 14/15 | 2.5 | PF 1 1/2" | 72 | 16 |
| RB-022S | 1~ | 1.5 | 220 | 9 | 14/15 | 4.5 | PF 2" | 75 | 26 |
| RB-200 | 3~ | 0.2 | 220 | 1.1 | 7月9日 | 0.6 | PF 1" | 65 | 7.5 |
| RB-400S | 3~ | 0.4 | 220 | 1.9 | 10月12日 | 1.3 | PF 1 1/4" | 68 | 10 |
| RB-750 | 3~ | 0.75 | 220 | 3 | 14/15 | 2.5 | PF 1 1/2" | 72 | 15 |
| RB-022 | 3~ | 1.5 | 220 | 5.5 | 14/15 | 4.5 | PF 2" | 75 | 23 |
| RB-023 | 3~ | 2.2 | 220 | 8 | 21/25 | 4.5 | PF 2" | 75 | 26 |
| RB-033 | 3~ | 2.2 | 220 | 8 | 15/15 | 6 | PF 2" | 78 | 28 |
| RB-035 | 3~ | 3.7 | 220 | 13 | 28/30 | 6 | PF 2" | 78 | 36 |
| RB-055 | 3~ | 3.7 | 220 | 13 | 22/21 | 7.5 | PF 2" | 80 | 42 |
| RB-057 | 3~ | 5.5 | 220 | 19 | 30/34 | 7.5 | PF 2" | 80 | 52 |
| RB-077 | 3~ | 5.5 | 220 | 19 | 28/25 | 11 | PF 2 1/2" | 85 | 57 |
| RB-0710 | 3~ | 7.5 | 220 | 26 | 30/38 | 11 | PF 2 1/2" | 85 | 67 |
| RB-110 | 3~ | 7.5 | 220 | 26 | 19/19 | 12 | PF 2 1/2" | 85 | 68 |
| RB-1515 | 3~ | 11 | 220 | 35 | 15/15 | 24 | PF 4" | 105 | 120 |
| RB-1520 | 3~ | 15 | 220 | 47 | 20/20 | 24 | PF 4" | 105 | 130 |
| RB-1525 | 3~ | 19 | 220 | 58 | 25/25 | 24 | PF 4" | 105 | 140 |
備註：由於技術上的需要本公司保留設計與變更的權利。
A policy of continuous improvement is followed, and the right to alter any published data without notice is reserved.
允許最大氣溫和氣體進口溫度為40°C。
he maximent permissible temperature and the gas temperature at the inlet is 40°C.
環形鼓風機 Ring Blower (Side Channel Blower)
用途：應用再生理論所設計的環形鼓風機，單段風葉經小風量增速，產生高風壓特性。免保養，無油氣，壽命長！
Futural: Ring Blowers are designed with practical regenerative theory.
Require no maintenance! No oily odor! eternity life!

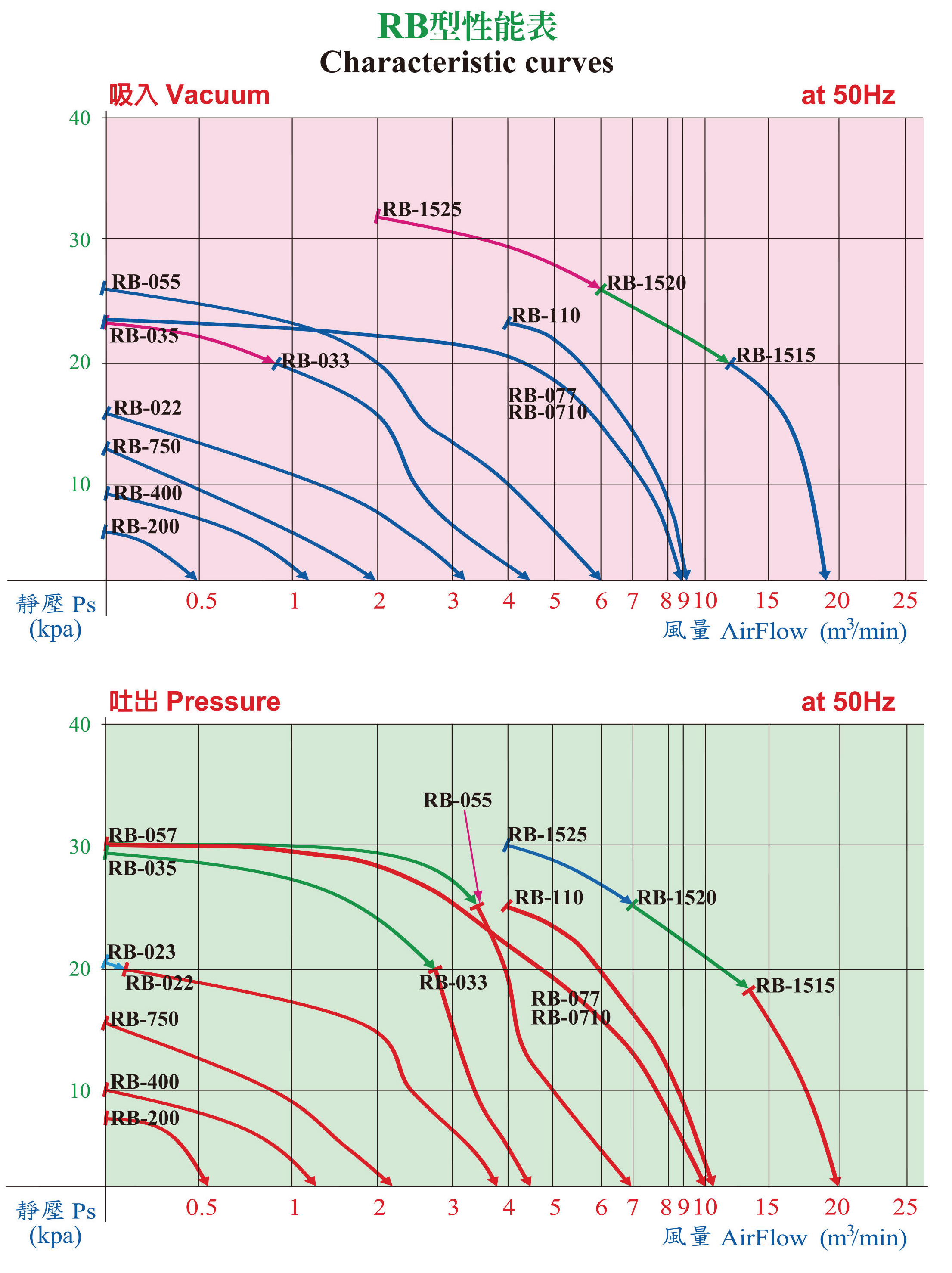

at 50HZ
| 型式 Type | 相數 | 功率 | 電壓 | 電流 | 最大使用靜壓 吸入/吐出 | 最大風量（吐出） | 出入口徑 | 噪音 | 重量 |
| Phase | Power | Frequency | Phase | Vacuum/Presure (Rated) | Air Flow (max) | In/Out | Noise Level | Weight | |
| (KW) | (V) | (A) | (Kpa) | (m3/min) | Let | (dB) | (Kg) | ||
| RB-200S | 1~ | 0.2 | 220 | 1.5 | 6/7 | 0.6 | PF 1" | 60 | 8 |
| RB-400S | 1~ | 0.4 | 220 | 2.5 | 9/10 | 1.3 | PF 1 1/4" | 65 | 11 |
| RB-750S | 1~ | 0.75 | 220 | 5 | 13/16 | 2 | PF 1 1/2" | 67 | 16 |
| RB-022S | 1~ | 1.5 | 220 | 9 | 17/18 | 3.2 | PF 2" | 70 | 26 |
| RB-200 | 3~ | 0.2 | 380 | 0.9 | 6月7日 | 0.6 | PF 1" | 60 | 7.5 |
| RB-400S | 3~ | 0.4 | 380 | 1.3 | 9月10日 | 1.3 | PF 1 1/4" | 65 | 10 |
| RB-750 | 3~ | 0.75 | 380 | 1.8 | 13/16 | 2 | PF 1 1/2" | 67 | 15 |
| RB-022 | 3~ | 1.5 | 380 | 3.5 | 17/18 | 3.2 | PF 2" | 70 | 23 |
| RB-023 | 3~ | 2.2 | 380 | 5 | 18/21 | 3.2 | PF 2" | 70 | 26 |
| RB-033 | 3~ | 2.2 | 380 | 5 | 20/20 | 8 | PF 2" | 70 | 28 |
| RB-035 | 3~ | 3.7 | 380 | 7.5 | 22/29 | 8 | PF 2" | 70 | 36 |
| RB-055 | 3~ | 3.7 | 380 | 7.5 | 22/24 | | PF 2" | 77 | 42 |
| RB-057 | 3~ | 5.5 | 380 | 11.5 | 26/30 | | PF 2" | 80 | 52 |
| RB-077 | 3~ | 5.5 | 380 | 11.5 | 23/30 | 10 | PF 2 1/2" | 80 | 57 |
| RB-0710 | 3~ | 7.5 | 380 | 15.5 | 22/30 | 9 | PF 2 1/2" | 80 | 67 |
| RB-110 | 3~ | 7.5 | 380 | 15.5 | 21/23 | 10 | PF 2 1/2" | 80 | 68 |
| RB-1515 | 3~ | 11 | 380 | 21 | 20/18 | 19 | PF 4" | 90 | 120 |
| RB-1520 | 3~ | 15 | 380 | 28 | 26/24 | 19 | PF 4" | 90 | 130 |
| RB-1525 | 3~ | 19 | 380 | 35 | 32/30 | 19 | PF 4" | 90 | 140 |
備註：由於技術上的需要本公司保留設計與變更的權利。
A policy of continuous improvement is followed, and the right to alter any published data without notice is reserved.
允許最大氣溫和氣體進口溫度為40°C。
he maximent permissible temperature and the gas temperature at the inlet is 40°C.
