4" 風扇
AC FAN SK109AP

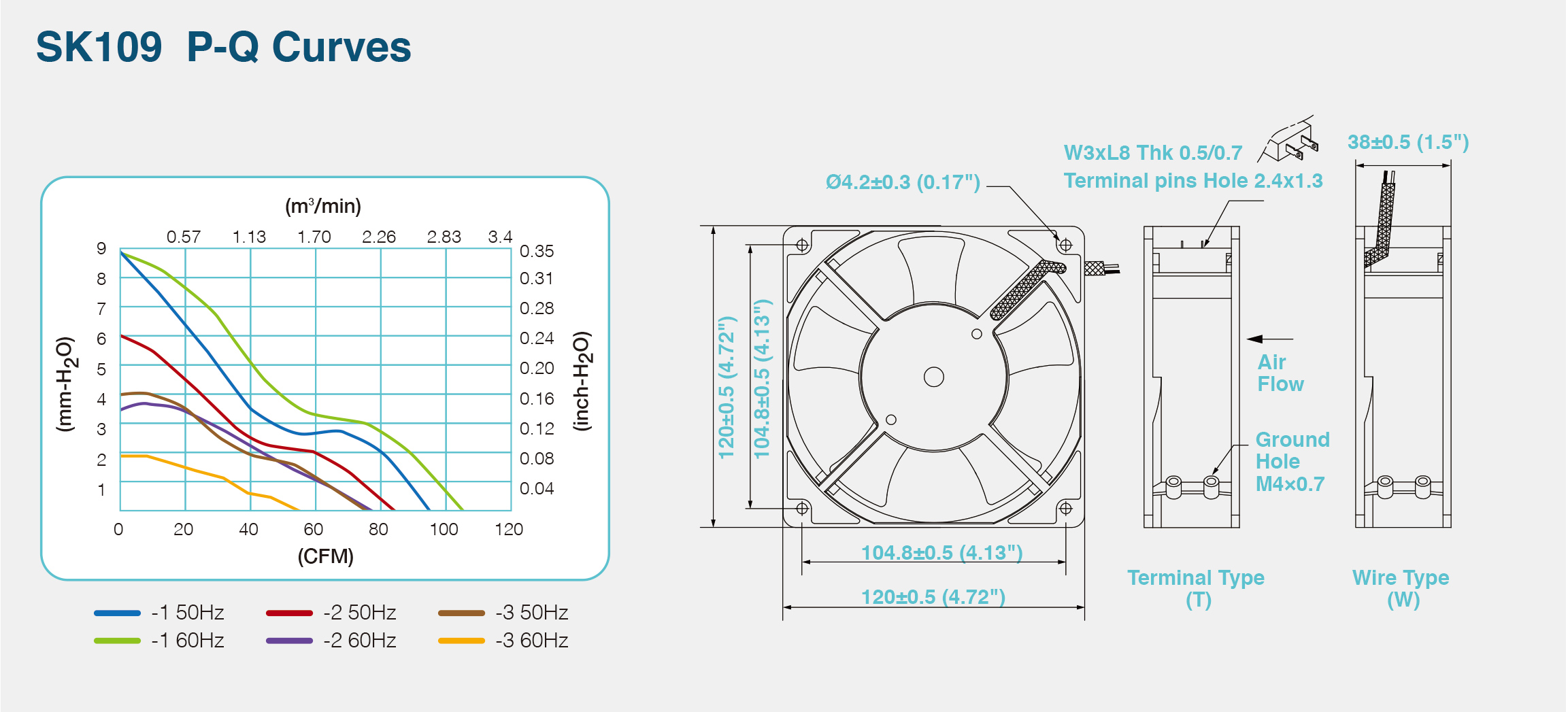

120x120x38mm (4.72”x1.5”) 55-105 CFM
120x120x38mm (4.72”x1.5”) 55-105 CFM
型號 :
SK109
| 馬達 | Motor | Shaped pole, imedance protected |
| 外殼 | Housing/Frame | Die-cast aluminum, Painted black (AP) or Plated (AN) |
| 風葉 | Impeller | PBT thermoplastic + glass fiber, UL 94V-O |
| 軸承 | Bearing Type | Two-ball or sleeve abailable |
| 接電方式 | Connection | T-terminal push-on type or W-lead wire type |
| 耐壓 | Dielectric Strength | 1 min. at 1,500VAC, 50/60Hz |
| 溫度範圍 | Operating Temp | Ball bearing -20°C ~70°C |
| Sleeve bearing -10°C~+55°C | ||
| 壽命 | Life Expectancy | Ball bearing 60,000 hours at 40°C |
| Sleeve bearing 30,000 hours at 40°C | ||
| 淨重 | Net Weight | 550 gm (1.2 pounds) |
| 認證 | Safety Approvals | UL, CUL, TUV, CE, RoHS |
| Model No. | Rated VAC | Freq. Hz | Rated Input Amp | Rated Input watt | Rated Speed RPM | Max. Air Flow | Max. Static Pressure | Noise Level (dB) | ||
| m3/min | CFM | mm-H20 | inch-H20 | |||||||
| 型號 | 電壓 | 頻率 | 電流 | 功率 | 轉速 | 最大風量 | 最大風壓 | 噪音 | ||
| SK109AP-11-1 | 110 (100V-120V) | 50/60 | 0.25/0.21 | 17/15 | 2650/3000 | 2.6/2.9 | 95/105 | 8.9/8.9 | 0.35/0.35 | 45/49 |
| SK109AP-11-2 | 110 (100V-120V) | 50/60 | 0.14/0.13 | 11/11 | 2500/2400 | 2.3/2.2 | 84/77 | 6.0/3.5 | 0.24/0.14 | 43/45 |
| SK109AP-11-3 | 110 (100V-120V) | 50/60 | 0.1/0.1 | 9/8 | 2300/1800 | 2.2/1.6 | 76/55 | 4.0/1.9 | 0.16/0.07 | 41/32 |
| SK109AP-22-1 | 220 (200V-230V) | 50/60 | 0.12/0.10 | 12/11 | 2650/3000 | 2.6/2.9 | 95/105 | 8.9/8.9 | 0.35/0.35 | 45/49 |
| SK109AP-22-2 | 220 (200V-230V) | 50/60 | 0.07/0.06 | 12/11 | 2500/4000 | 2.3/2.2 | 84/77 | 6.0/3.5 | 0.24/0.14 | 43/41 |
| SK109AP-22-3 | 220 (200V-230V) | 50 | 0.06 | 9 | 2050 | 2.2 | 76 | 4 | 0.16 |
36 |
Customised item: Frameless, Double Voltage, FG, RD
