NM系列
型號 :
NM-200 , NM-300
特長
1.體積小型而輕便，容易攜帶操作。
2.鋁風葉為鋼模壓鑄成型，效率極高。
3.鋁風葉都經過電腦平衡校正。
用途
1.適合坑道、大型鐵管道、地下道、船塢等..內部狹窄作業場合使用。
2.在造船、橋樑、和製盤工廠等地，排出焊接工作時的煙氣。
3.在貯藏曹，通信和電力鋼索通道等清掃和其他作業時排出廢氣和方指缺氧的情形。
Features
1.Aluminium blads compact in size easy to operate.
2.Signle-phase condensor motor eliminates the problem of over=heating of three-phase motors.
3.Aluminium blades have been subject to balance correction with computer.
For use in
1.Underground tunnels shipyards honeycombed locales & narrow places.
2.To suck away toxic gases when welding, and keep air fresh.
3.Perfect for storage compartments, warehouse, and electric cable constructing sites.

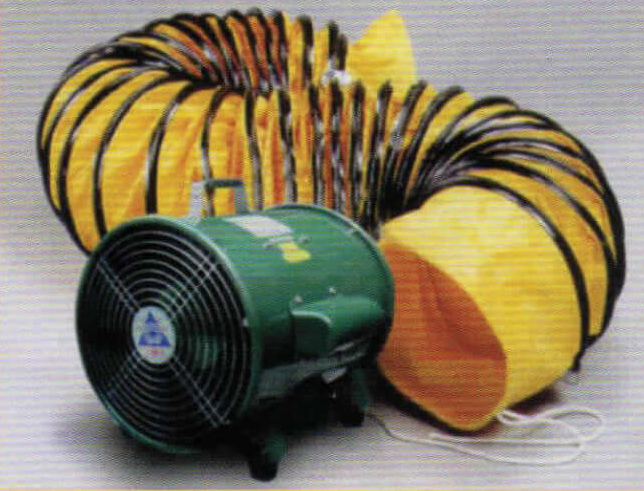

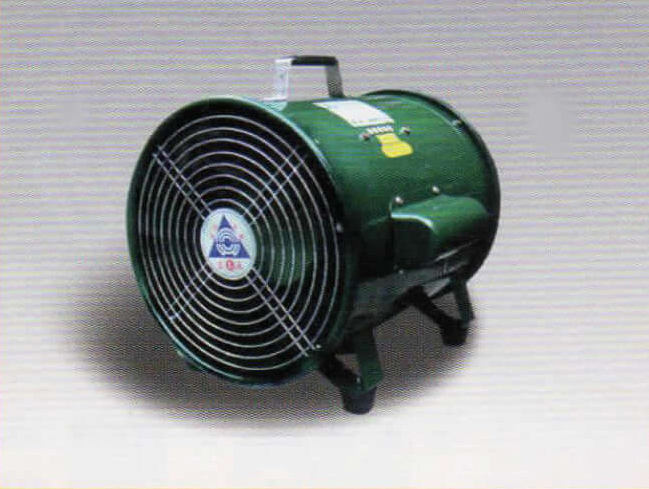

NM-300
Portable Ventilator
Size: 12”
Rotation: 3460rpm
HP:550W
Voltage: Single Phase 110V, 220V
Three Phase 220V, 380V
NM-200
Portable Ventilator
Size: 8”
Rotation: 3460rpm
HP:150W
Voltage: Single Phase 110V, 220V
Three Phase 220V, 380V
| 型式 | 出力 | 電壓 | 極數 | 風波數 | 風量 | 風壓 | 轉數 | 相數 | 重量 |
| Model | (W) | (V) | (P) | (Hz) | (m3/min) | (m/Aq) | (r.p.m.) | (pH) | (kg) |
| NM-200 | 150 | 110&220 | 2 | 50 | 25 | 35 | 2.950 | 單相(1pH) | 10.1 |
| 60 | 30 | 42 | 3465 | ||||||
| NM-300 | 550 | 110&220 | 2 | 50 | 40 | 60 | 2.950 | 單相(1pH) | 19.5 |
| 60 | 50 | 70 | 3465 |

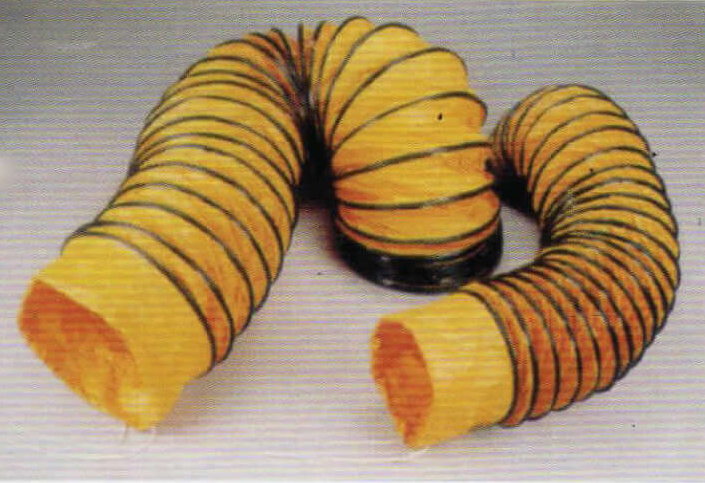

尼龍伸縮風管 Flexible Duct
直徑：180m/m~1000m/m 長度：1M~20M
DIA: From 180m/m~1000m/m LENGTH MEASURE: From 1m~20M

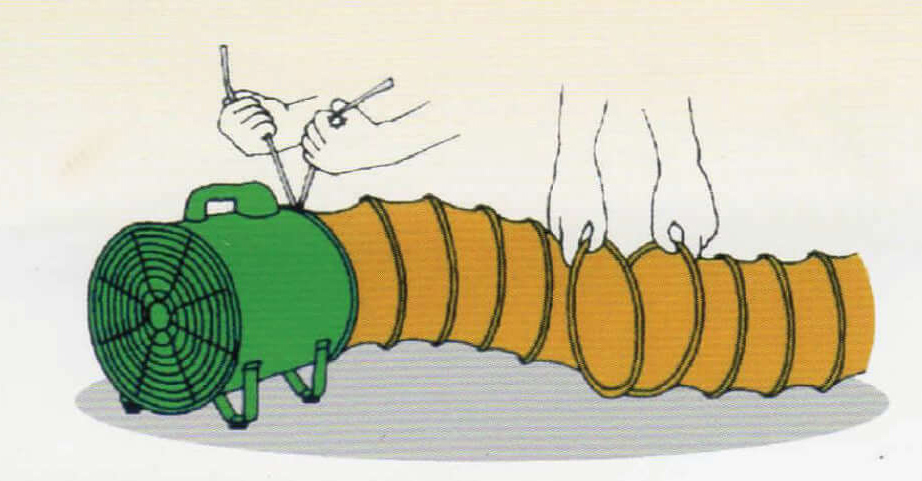

伸縮風管套接方法 Connection Flexible Duct
可隨意接上延長管，只要把延長管套在通風管尾端的還上，用繩子把接合部綁緊即可。
Easily fitted extensions can extend the duct. Simply slip the extension
