6" 風扇
AC FAN SK162AP

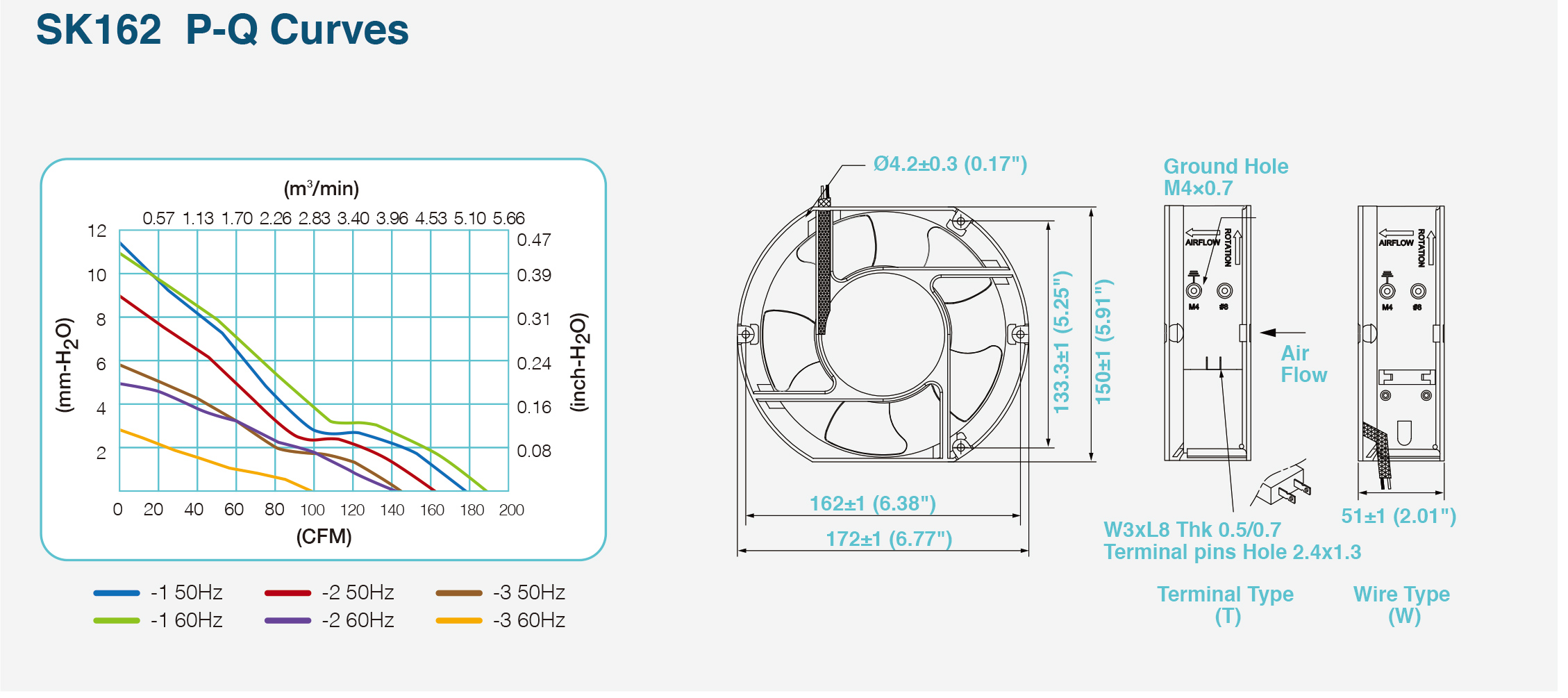

172x150x51mm (6.77”x5.91”x2.01”) 100-109 CFM
172x150x51mm (6.77”x5.91”x2.01”) 100-109 CFM
型號 :
SK162
| 馬達 | Motor | Shaped pole, imedance protected or thermally protected |
| 外殼 | Housing/Frame | Die-cast aluminum, Painted black (AP) or Plated (AN) |
| 風葉 | Impeller | PBT thermoplastic + glass fiber, UL 94V-O |
| 軸承 | Bearing Type | Two-ball bearing |
| 接電方式 | Connection | T-terminal push-on type or W-lead wire type |
| 耐壓 | Dielectric Strength | 1 min. at 1,500VAC, 50/60Hz |
| 溫度範圍 | Operating Temp | Ambient -20°C~+55°C |
| 壽命 | Life Expectancy | 60,000 hours at 40°C |
| 淨重 | Net Weight | 1,050 gm (2.31 pounds) |
| 認證 | Safety Approvals | UL, CUL, TUV, CE, RoHS |
| Model No. | Rated VAC | Freq. Hz | Rated Input Amp | Rated Input watt | Rated Speed RPM | Max. Air Flow | Max. Static Pressure | Noise Level (dB) | ||
| m3/min | CFM | mm-H20 | inch-H20 | |||||||
| 型號 | 電壓 | 頻率 | 電流 | 功率 | 轉速 | 最大風量 | 最大風壓 | 噪音 | ||
| SK162AP-11-1 | 110 (100V-120V) | 50/60 | 0.56/0.50 | 38/36 | 2600/2850 | 5.0/5.4 | 178/190 | 11.4/11.0 | 0.145/0.43 | 50/53 |
| SK162AP-11-2 | 110 (100V-120V) | 50/60 | 0.28/0.27 | 25/23 | 2400/2000 | 4.6/4.0 | 165/143 | 9.0/5.0 | 0.35/0.20 | 40/42 |
| SK162AP-11-3 | 110 (100V-120V) | 50/60 | 0.21/0.19 | 22/20 | 2170/1300 | 4.1/2.8 | 145/100 | 5.8/2.8 | 0.23/0.11 | 32/34 |
| SK162AP-22-1 | 220 (200V-230V) | 50/60 | 0.30/0.25 | 38/36 | 2600/2850 | 5.0/5.4 | 178/190 | 11.4/11.0 | 0.45/0.43 | 50/53 |
| SK162AP-22-2 | 220 (200V-230V) | 50/60 | 0.17/0.16 | 25/23 | 2400/2200 | 4.6/4.0 | 162/143 | 9.0/5.0 | 0.35/0.20 | 40/42 |
| SK162AP-22-3 | 220 (200V-230V) | 50/60 | 0.13/0.12 | 22/20 | 2170/1300 | 4.1/2.8 | 145/100 | 5.8/2.8 | 0.23/0.11 | 32/34 |
Customised item: Frameless, Double Voltage
