HTB 透浦多段式鼓風機系列
型號 :
HTB
| 型 式 Type |
相 數
Phase
|
功率
Output
(KW)
|
電 壓
Voltage
(V)
|
電流
Current
(A)
|
最大靜壓(吐出)
Pressure (Max.)(
kpa)
|
最大風量
(吐出)
Air Flow (Max.)
(m/min)
|
出口
口徑
Outlet
(mm)
|
噪音
Noise Level
(dB)
|
重量
Weight
(Kg)
|

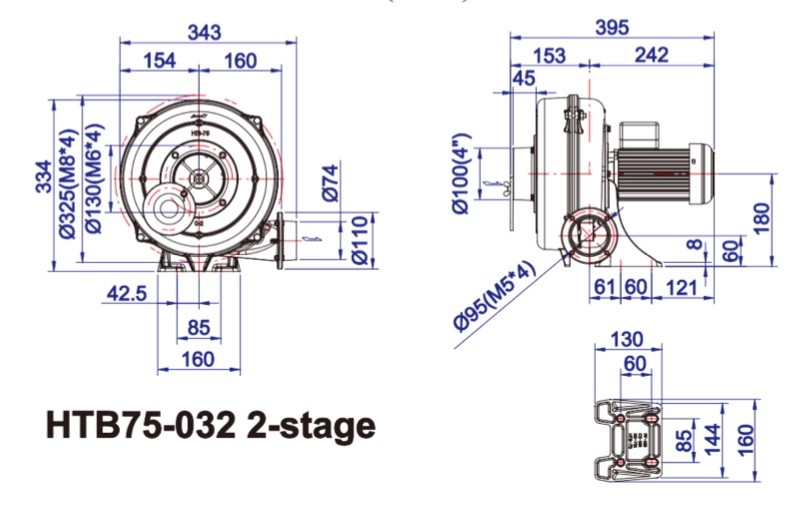

| HTB75-032 | 3~ | 0.4 |
220
380
|
1.9
1.2
|
2.1/2.6 | 6/7 | 75mm | 53/65 | 16 |

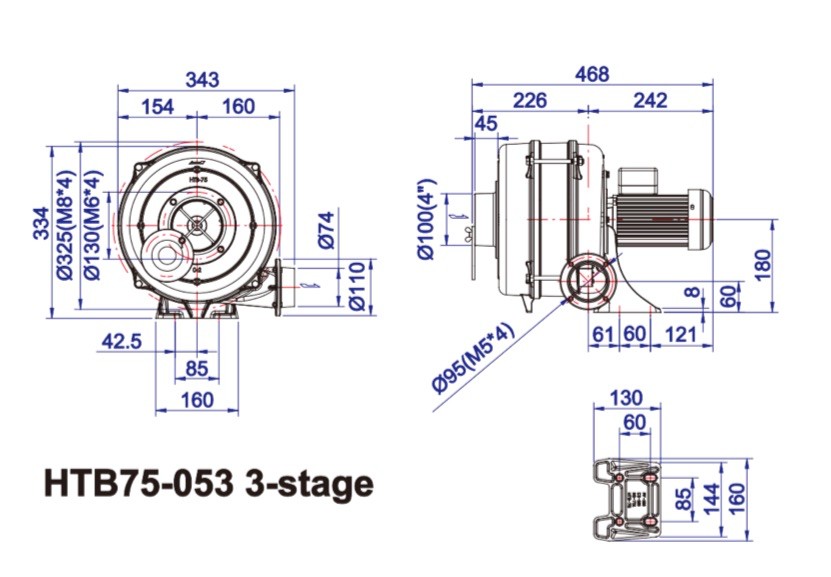

| HTB75-053 | 3~ | 0.4 |
220
380
|
1.9
1.2
|
2.9/3.8 | 6.5/7.5 | 75mm | 55/68 | 18 |

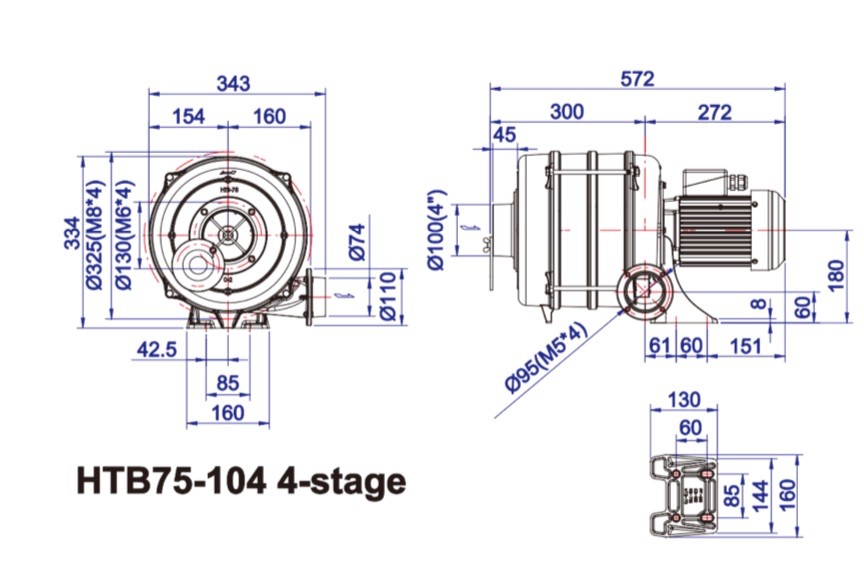

| HTB75-104 | 3~ | 0.75 |
220
380
|
3
1.8
|
3.7/5 | 6.5/8 | 75mm | 56/70 | 24 |

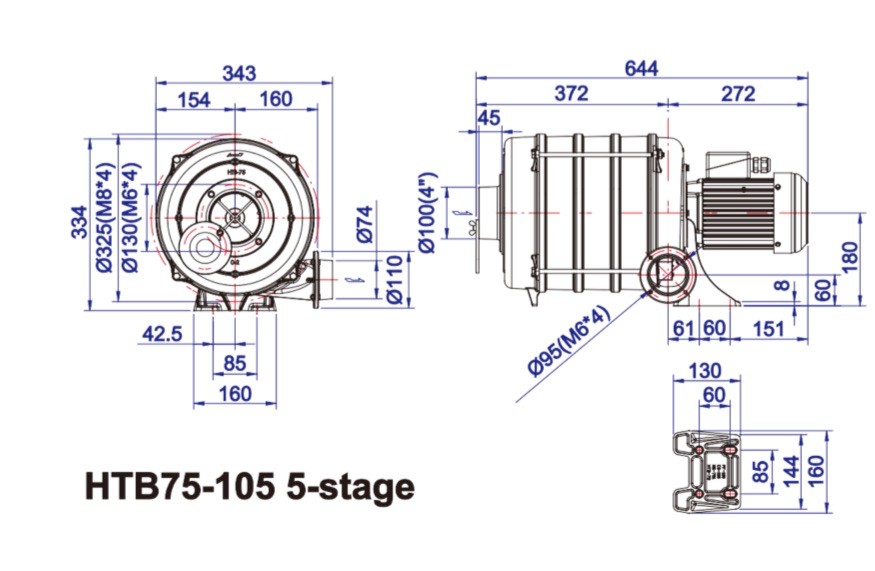

| HTB75-105 | 3~ | 0.75 |
220
380
|
3
1.8
|
4.2/6 | 6.8/8.5 | 75mm | 56/70 | 27 |

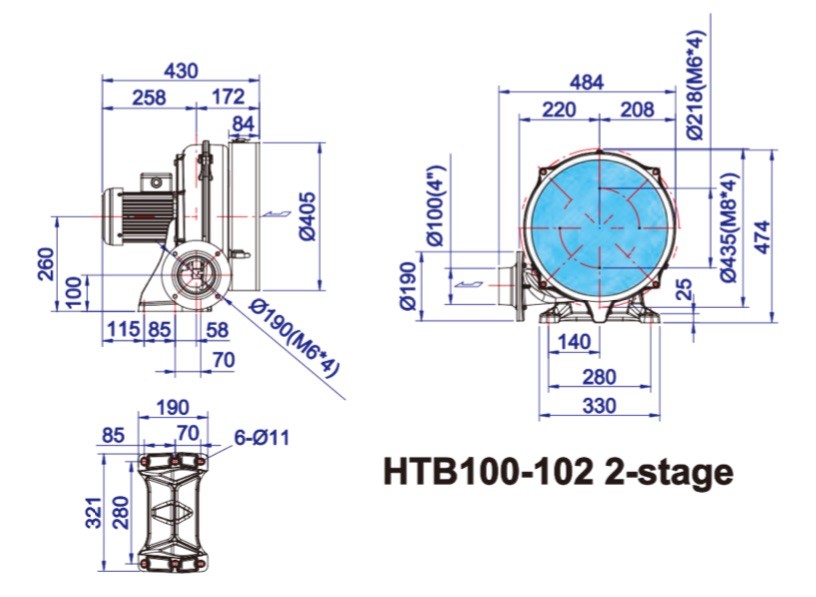

| HTB100-102 | 3~ | 0.75 |
220
380
|
3
1.8
|
3.4/4.5 | 11 13 | 100mm | 60/74 | 25 |

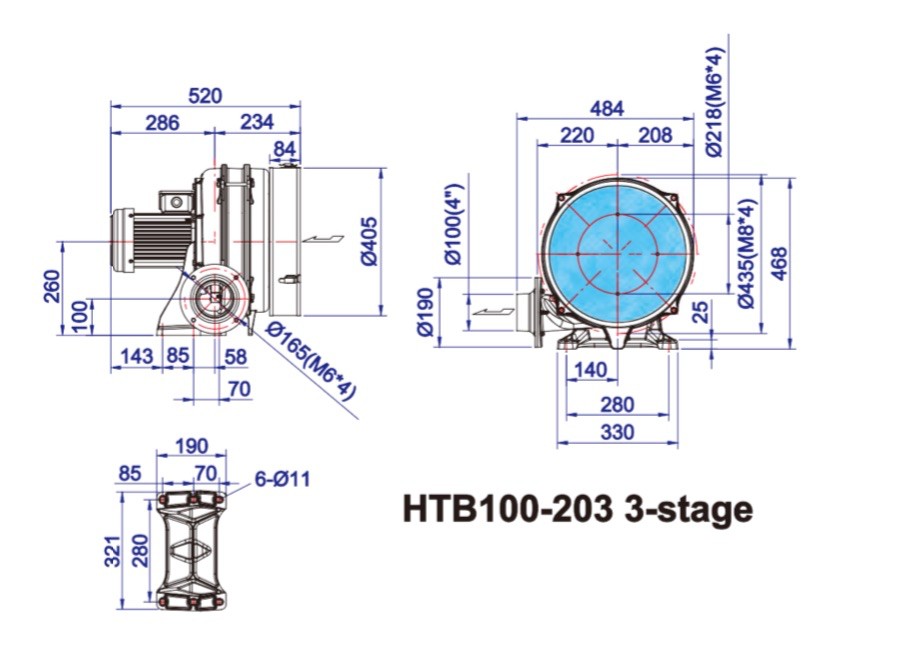

| HTB100-203 | 3~ | 1.5 |
220
380
|
5.5
3.5
|
5/7 | 11 14 | 100mm | 61/76 | 33 |

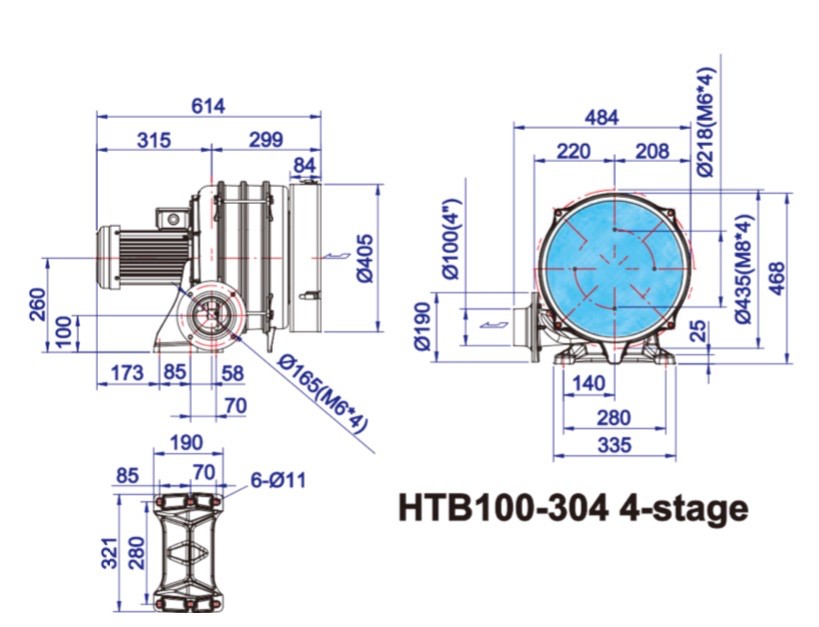

| HTB100-304 | 3~ | 2.2 |
220
380
|
8
5
|
6.5/9 | 12.5/16 | 100mm | 63/78 | 41 |

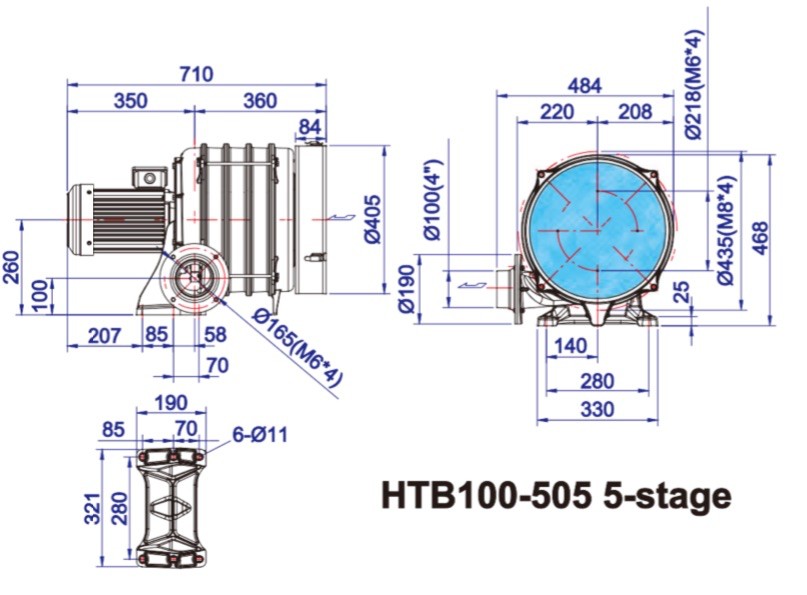

| HTB100-505 | 3~ | 3.7 |
220
380
|
13
7.5
|
7.9/11 | 12.8/16.5 | 100mm | 64/80 | 53 |

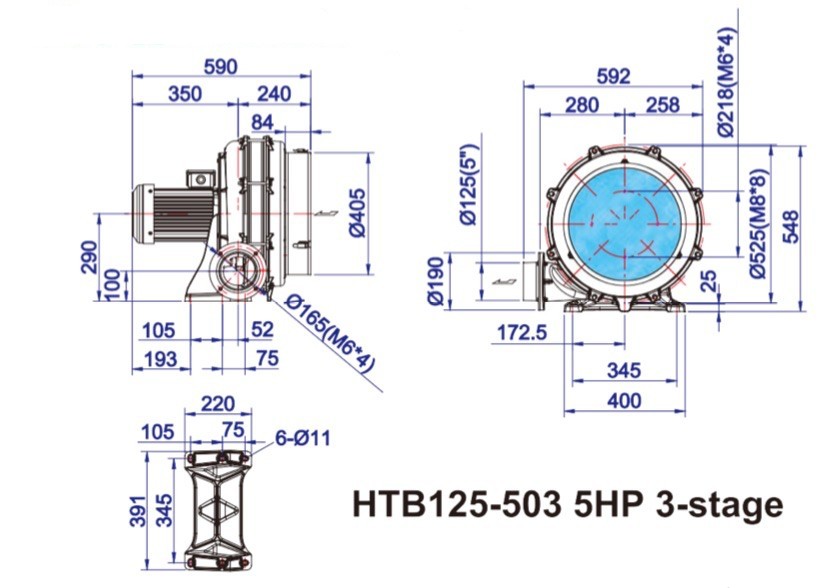

| HTB125-503 | 3~ | 3.7 |
220
380
|
13
7.5
|
5.8/7.9 | 19/23 | 125mm | 70/85 | 62 |

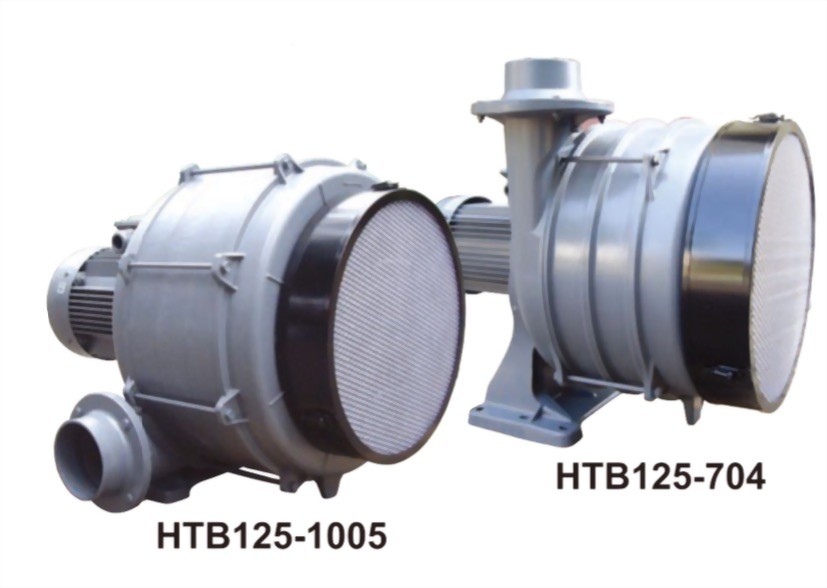

| HTB125-704 | 3~ | 5.5 |
220
380
|
19
11.5
|
7.5/10.5 | 20/24 | 125mm | 70/88 | 87 |

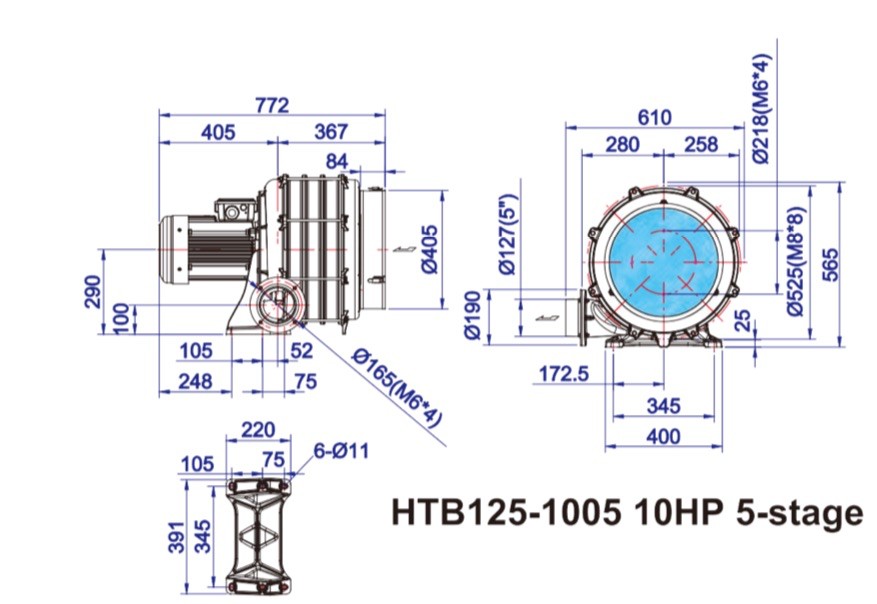

| HTB125-1005 | 3~ | 7.5 |
220
380
|
26
15.5
|
9/13 | 20/24 | 125mm | 72/90 | 109 |
| HTB200-1502 | 3~ | 11 |
220
380
|
36
22
|
7/9 | 52/65 | 200mm | 86/109 | 150 |
| HTB200-2002 | 3~ | 15 |
220
380
|
47
28
|
8/10 | 56/70 | 200mm | 88/110 | 170 |

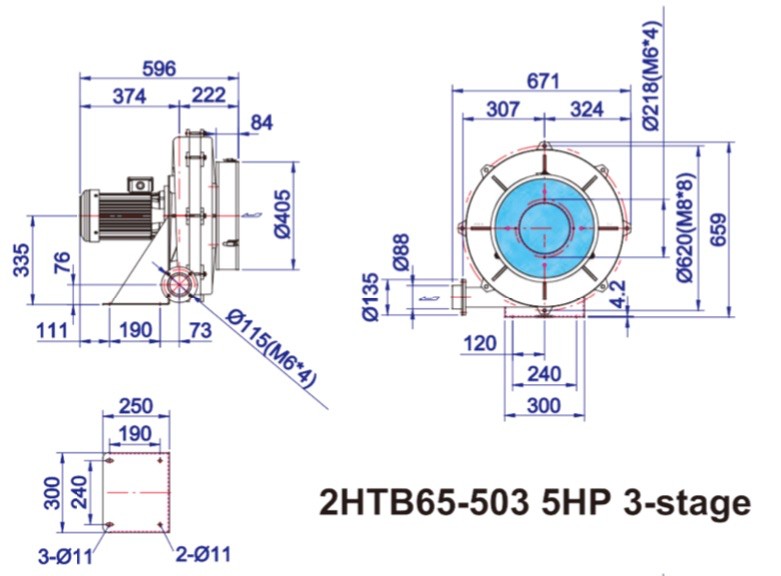

| 2HTB65-503 | 3~ | 3.7 |
220
380
|
13
7.5
|
12/16 | 11/13 | pf 2 1"/2 | 70/85 | 73 |

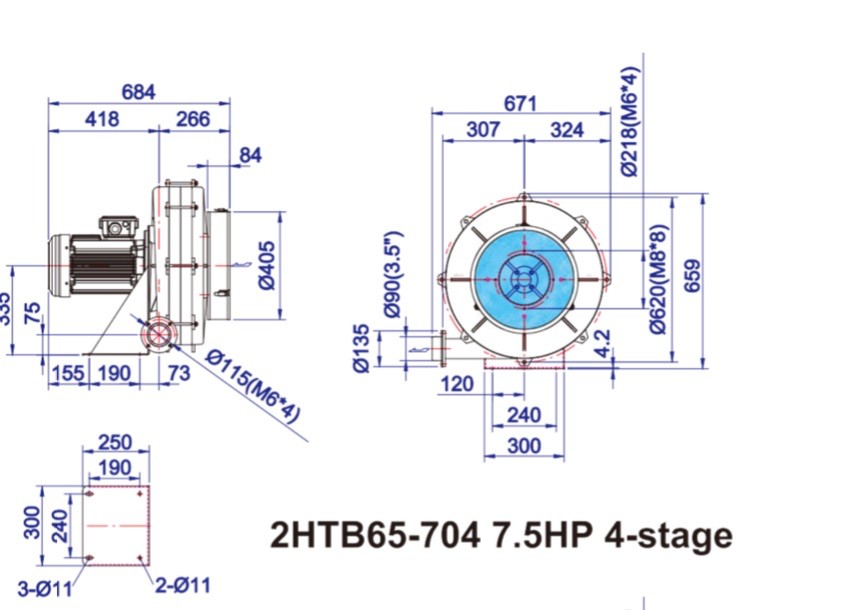

| 2HTB65-704 | 3~ | 5.5 |
220
380
|
19
11,5
|
15/21 | 12/14 | pf 2 1"/2 | 70/85 | 104 |

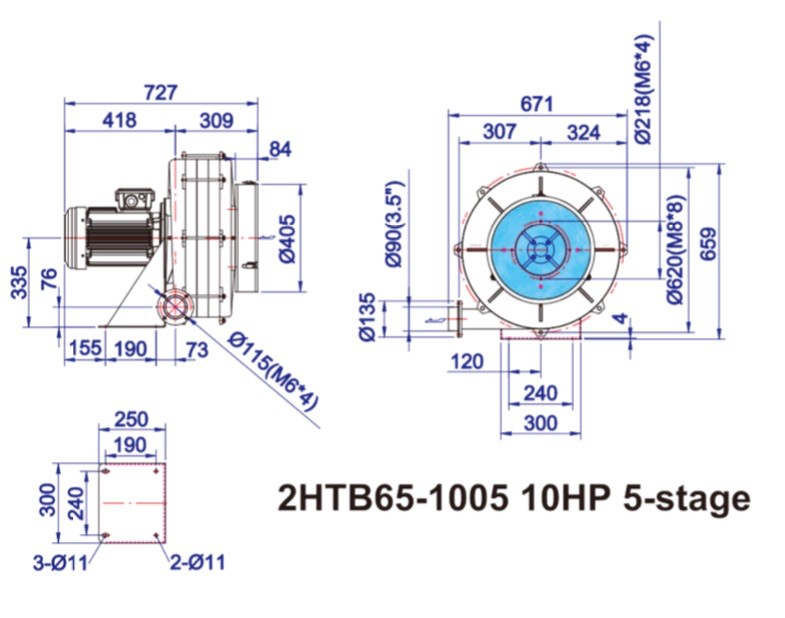

| 2HTB65-1005 | 3~ | 7.5 |
220
380
|
26
15.5
|
18/26 | 13/15 | pf 2 1"/2 | 70/85 | 118 |
