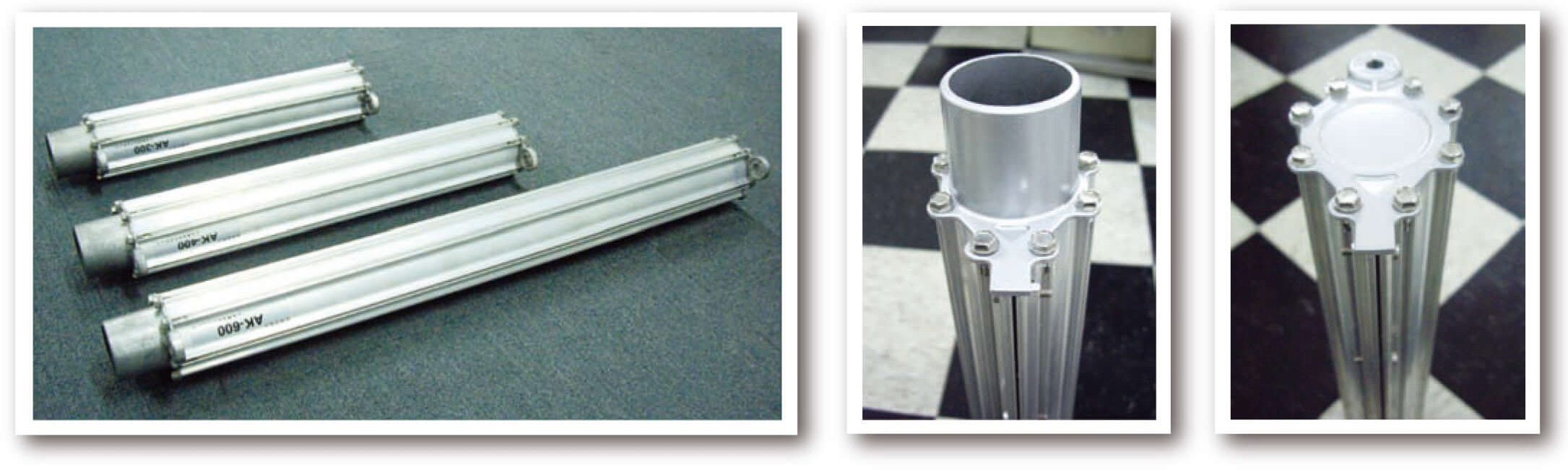

• 鋁合金風刀

鋁合金風刀

型號 : AK


產品特點:

本風刀是由全公司所研發,鋁合擠壓一體成型,滴型整流結構,風壓風量均勻,壓損低,構造單純,材質堅固,組裝容易。可調式出風口設計,出口的氣流是單方向吹出設計,滿足多元化生產需要。



Features :

The air knife is a research and development by Chuan Fan company. The extruded aluminum, raindrops rectifier structure, uniform air flow pressure, low pressure drop, simple structure, strong material, easy to assemble.

Adjustable outlet design, the outlet air flow is blown in one direction designed to meet the diverse production needs.



應 用: 吹除工件表面的水份或油份、冷却降溫、熱風吹乾等....

Application : Blowing the surface of the water or oil, cooling , hot air drying, etc




型號
MODEL
AK50-300-1 AK50-400-1 AK50-600-1 AK50-900-1
AK50-900-2
AK50-1200-1
AK50-1200-2
入風口徑/數量
Inlet diameter/Quantity
50mm X 1 50mm X 1 50mm X 1 50mm X 1
50mm X 2
50mm X 1
50mm X 2
長度
Length
300mm 400mm 600mm 900mm 1200mm
出風口寬度
Air outlet width
0.5~2mm 0.5~2mm 0.5~2mm 0.5~2mm 0.5~2mm

型號
MODEL
AK75-500-1 AK75-1000-1 AK75-1200-1
AK75-1200-2
AK75-1500-1
AK75-1500-2
AK75-1800-1
AK75-1800-2
入風口徑/數量
Inlet diameter/Quantity
75mm X 1 75mm X 1 75mm X 1 75mm X 1
75mm X 2
75mm X 1
75mm X 2
長度
Length
500mm 1000mm 1200mm 1500mm 1800mm
出風口寬度
Air outlet width
1~3mm 1~3mm 1~3mm 1~3mm 1~3mm



適用鼓風機概算

Estimates for Blowers

所需風量(m3/min)=[風刀長度(m)x出風口寬度(m)]x希望風速(m/sec)60x(1.2~1.5)

Airflow(m3/min)- [Length (m) x Air outlet width (m)] x Wind speed (m/sec) x 60 x (1.2~1.5)


風刀出口寬度
Air outlet width
1mm 2mm 3mm 4mm
所需靜壓
Static pressure
10kPa以上
10kPa or more
5~15kPa 3~8kPa 2~5kPa
