DG 系列

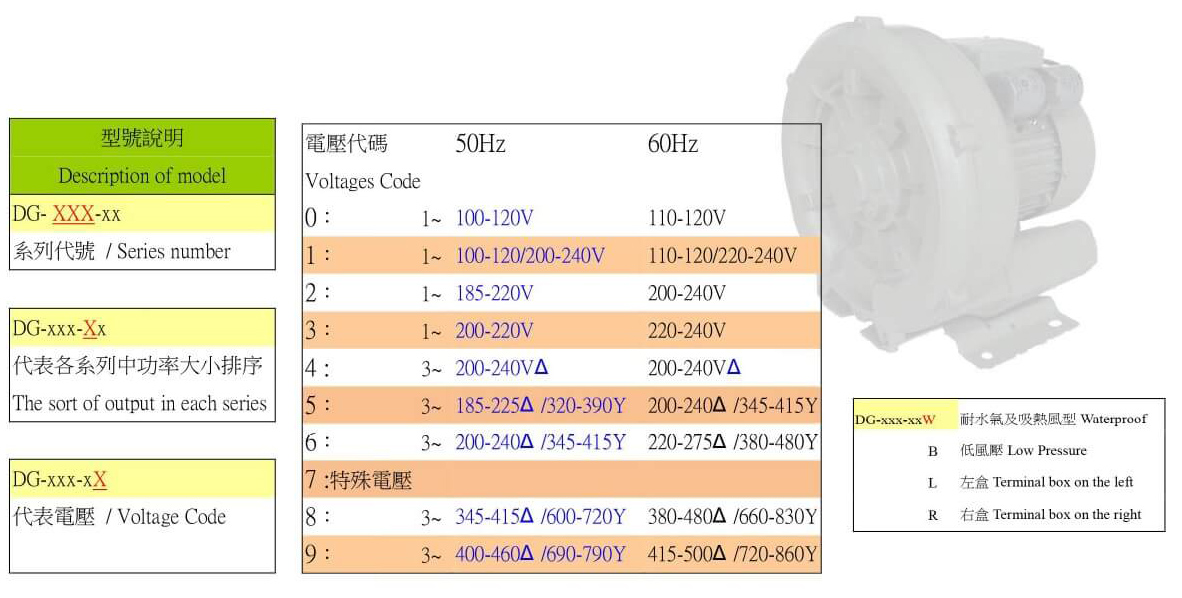

型號 :
DG
單相馬達 / Single Phase AC IP55 50Hz/60Hz
| 型號 Model | 曲線編號 | 頻率 | 功率 | 電壓 | 滿載額定電流 | 靜壓 | 最大風量 | 噪音 | 重量 |
| Curve No. | Frequercy | Ouput | Voltage | Current | 吸Vacuum/吐Compressor | Max Airflow | Noise | Weight | |
| (Hz) | (kW) | (V) | (A) | (mbar) | (m3/min) | (dB) A | (Kg) | ||
| DG-100-11 | D1 | 50 | 0.18 | 100-120/200-240 | 2.5/1.25 | 50/40 | 1.0 | 52 | 6.5 |
| G1 | 60 | 0.2 | 110-120/220-240 | 2.55/1.28 | 70/70 | 1.2 | 55 | ||
| DG-200-11 | D2 | 50 | 0.4 | 100-120/200-240 | 5.80/2.90 | 110/130 | 1.58 | 58 | 11.4 |
| G2 | 60 | 0.5 | 110-120/220-240 | 7.80/3.90 | 130/150 | 1.8 | 61 | ||
| DG-200-11W | D3 | 50 | 0.4 | 100-120/200-240 | 5.80/2.90 | 110/130 | 1.5 | 58 | 12 |
| G3 | 60 | 0.5 | 110-120/220-240 | 7.80/3.90 | 130/150 | 1.8 | 61 | ||
| DG-300-11 | D4 | 50 | 0.75 | 100-120/200-240 | 11.6/5.80 | 140/150 | 2.6 | 63 | 16 |
| G4 | 60 | 0.85 | 110-120/220-240 | 13.0/6.50 | 140/140 | 3.1 | 64 | ||
| DG-300-11W | D5 | 50 | 0.75 | 100-120/200-240 | 11.6/5.80 | 140/150 | 2.5 | 63 | 16.5 |
| G5 | 60 | 0.85 | 110-120/220-240 | 13.0/6.50 | 140/140 | 3.1 | 64 | ||
| DG-300-31 | D6 | 50 | 1.1 | 100-120/200-240 | 14.6/7.30 | 160/190 | 2.6 | 63 | 16.5 |
| G6 | 60 | 1.3 | 110-120/220-240 | 16.6/8.30 | 180/190 | 3.1 | 64 | ||
| DG-400-21 | D7 | 50 | 1.1 | 100-120/200-240 | 17.0/8.50 | 150/150 | 3.7 | 70 | 23.5 |
| G7 | 60 | 1.3 | 110-120/220-240 | 19.0/9.60 | 150/140 | 4.4 | 73 | ||
| DG-400-31 | D8 | 50 | 1.5 | 100-120/200-240 | 20.0/10.0 | 180/190 | 3.7 | 70 | 26 |
| G8 | 60 | 1.75 | 110-120/220-240 | 22.8/11.4 | 180/170 | 4.4 | 73 | ||
| DG-400-31W | D9 | 50 | 1.5 | 100-120/200-240 | 20.0/10.0 | 180/190 | 3.7 | 70 | 26.5 |
| G9 | 60 | 1.75 | 110-120/220-240 | 22.8/11.4 | 180/170 | 4.4 | 73 | ||
| DG-230-11 | D10 | 50 | 0.75 | 100-120/200-240 | 9.20/4.50 | 180/220 | 1.6 | 60 | 17.5 |
| G10 | 60 | 0.85 | 110-120/220-240 | 11.0/5.40 | 200/220 | 1.8 | 66 | ||
| DG-330-11 | D11 | 50 | 1.5 | 100-120/200-240 | 20.0/10.0 | 240/250 | 2.6 | 66 | 28.5 |
| G11 | 60 | 1.75 | 110-120/220-240 | 22.8/11.4 | 250/260 | 3.1 | 69 |
附註：
1.上述資料僅供參考，如有不同以實品為主。
2.本公司保有設計變更之權利，恕不另行通知。
3.如有任何疑問請洽經銷商或本公司。
